HOT AIR DRYER - LS TYPE
|
|
|
|
|
Hot air dryer ( LS - 1, LS - 3, LS - 6, LS
- 7, LS - 8, LS - 9, LS - 10 )
The hot air dryer has a warm and a cold section. In the warm
section ventilators circulate warm air. This dryer conveyor
belt dries papers printed with solvent inks perfectly.
|
Type
|
Belt width
|
Length
|
Heating power
|
Temperature
|
Transit-time
|
|
LS - 1
|
800 mm
|
3000 mm
|
12000 W
|
40 - 170 °C
|
30 - 120 sec
|
|
LS - 3
|
1100 mm
|
5500 mm
|
22000 W
|
40 - 110 °C
|
30 - 120 sec
|
|
LS - 6
|
800 mm
|
8400 mm
|
32000 W
|
20 - 200 °C
|
1 - 10 min
|
|
LS - 7
|
800 mm
|
4200 mm
|
18000 W
|
20 - 150 °C
|
1 - 14 min
|
|
LS - 8
|
650 mm
|
1400 mm
|
5400 W
|
20 - 80 °C
|
10 - 30 sec
|
|
LS - 9
|
800 mm
|
2672 mm
|
16000 W
|
max. 200 °C
|
1 - 20 min
|
|
LS - 10
|
1200 mm
|
5500 mm
|
24000 W
|
80 °C
|
0,5 - 2 min
|
|
|
|
|
|
|
|
Hot air dryer ( LS - 1 )
|
Type
|
Belt width
|
Length
|
Heating power
|
Temperature
|
Transit-time
|
|
LS - 1
|
800 mm
|
3000 mm
|
12000 W
|
40 - 170 °C
|
30 - 120 sec
|
|
|
|
|
|

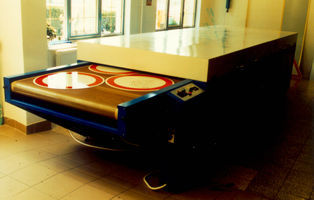

Hot air dryer ( LS - 3 )
|
Type
|
Belt width
|
Length
|
Heating power
|
Temperature
|
Transit-time
|
|
LS - 3
|
1100 mm
|
5500 mm
|
22000 W
|
40 - 110 °C
|
30 - 120 sec
|
|
|
|
|
|
Hot air dryer ( LS - 6 )
|
Type
|
Belt width
|
Length
|
Heating power
|
Temperature
|
Transit-time
|
|
LS - 6
|
800 mm
|
8400 mm
|
32000 W
|
20 - 200 °C
|
1 - 10 min
|
|
|
|
|
|
Hot air dryer ( LS - 7 )
|
Type
|
Belt width
|
Length
|
Heating power
|
Temperature
|
Transit-time
|
|
LS - 7
|
800 mm
|
4200 mm
|
18000 W
|
20 - 150 °C
|
1 - 14 min
|
|
|
|
|
|

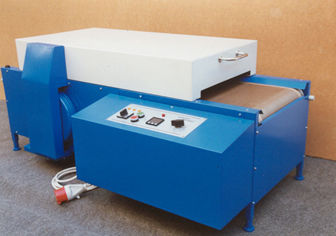

Hot air dryer ( LS - 8 )
|
Type
|
Belt width
|
Length
|
Heating power
|
Temperature
|
Transit-time
|
|
LS - 8
|
650 mm
|
1400 mm
|
5400 W
|
20 - 80 °C
|
10 - 30 sec
|
|
|
|
|
|

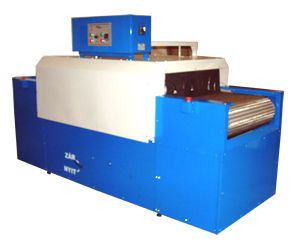

Hot air dryer ( LS - 9 )
|
Type
|
Belt width
|
Length
|
Heating power
|
Temperature
|
Transit-time
|
|
LS - 9
|
800 mm
|
2672 mm
|
16000 W
|
max. 200 °C
|
1 - 20 min
|
|
|
|
|
|

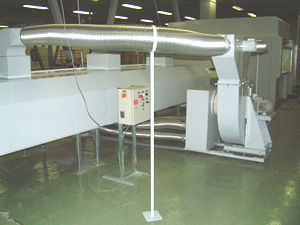

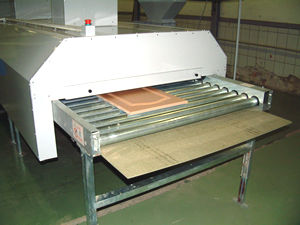

Hot air dryer ( LS - 10 )
|
Type
|
Belt width
|
Length
|
Heating power
|
Temperature
|
Transit-time
|
|
LS - 10
|
1200 mm
|
5500 mm
|
24000 W
|
80 °C
|
0,5 - 2 min
|
|
|
|
|
