WINDERS AND FAN ROW FOR LARGE FORMAT DIGITAL PRINTERS

Winders for large format digital printers ( CH4/137, CH4/165 )

This winding system is suitable to wind the printed media with different width. The winder is attached to the base of the digital printer. At this winding system the printed media encloses the tension bar and then attached to the core. The position of the winder tension bar controls the electric drive to keep a proper winding process. The direction of the winding is altering.

Type

 CH4/137

Paper width

 137 cm (54“)

Electric supply

 230V, 50Hz, 1A


Type

 CH4/165

Paper width

 165 cm (65“)

Electric supply

 230V, 50Hz, 1A

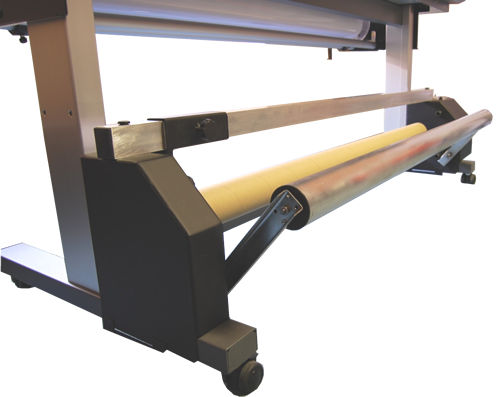

Winders ( CH - 3, CH - 4)

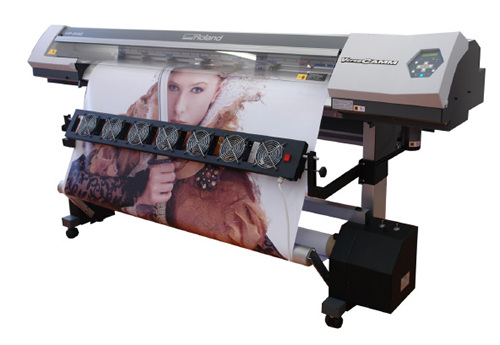

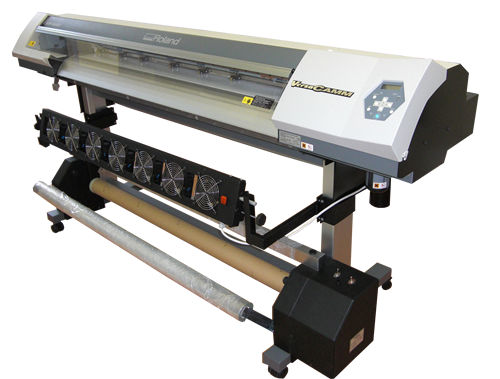

Winders and fan row ( CH - 3, CH - 4)

Fan row for large format digital printers ( VS1/137, VS1/165 )

The large format printer can be installed with a fan row. The air flows to the printed media and makes the drying process more effective. The fan row is very useful at medias which are printed with dark color inks. The fan row mounted to the frame of the printer. The console of the fan row is adjustable in that position that the air flows to the media in the best direction.

Type

 VS1/137

Paper width

 137 cm (54“)

Electric supply

 230V, 50Hz, 2A


Type

 VS1/165

Paper width

 165 cm (65“)

Electric supply

 230V, 50Hz, 2A


Winders and fan row for large format digital printers
