LARGE FORMAT ROTARY HEAT TRANSFER MACHINE
( CALANDER )

Large format rotary heat transfer machine ( Calander )

The rotary heat transfer machine is suitable for transfering sublimation inks to textile or for heating disperse inks on coated fabrics. The machine is specifically designed to be used for roll-to-roll large format digitally printed sheets. The calender is ideal for heat treating large format flags, banners, fabrics, etc.

The temperature distribution is maintained across the width of the heated drum with triple zone heat control and drum speed and pressure are also adjustable. A Nomex felt band ensures that equal amount of heat is transfered to the fabric everywhere.

Type

HV-1

HV-2

Transfer width:

max. 800mm

max. 1600mm or
after order

Belt speed:

max. 0,85 m/min

max. 0,85 m/min

Temperature:

max. 220 °C

max. 220 °C

Heating power:

6000W

11000W

Electric power supply:

400/230V, 50Hz,10A

400/230V, 50Hz, 25A

Calander for ribbons

The calander type HV-500 is suitable for thermoprinting of ribbons or thin fabrics.
Before the thermoprinting the ribbon on bobbin is placed on the machine stand. The ribbon passes throgh a series of stretch rollers after which it is pressed against the transfer paper - holding the sublimation inks - as well as the protection paper.
An endles Nomex felt transport belt clamps the materials to the heated ironongdrum and ensures sufficient compressing force.
The separetely stored printed ribbons, the used transfer paper and the used protection paper are wounded onto diffrent drums.
The edge controller ensures that the transport belt always remains in the right position.

Type

HV-500

Simultaneously printed:

6, max. 10 ribbons

Max. ironing width:

400mm

Transit time of 1meter ribbons:

22-460sec, variable

Drum temperature:

max. 220°C, regulated

Drum diameter:

500mm

Heating power:

8,8kW

Mains:

400/230V, 50Hz, 25A

Dimensions LxWxH:

2000x1100x2100mm

Calander ( HV-1 )

Type

  HV-1

Transfer width:

  max. 800mm

Belt speed:

  max. 0,85 m/min

Temperature:

  max. 220 °C

Heating power:

  6000W

Electric power supply:

  400/230V, 50Hz,10A

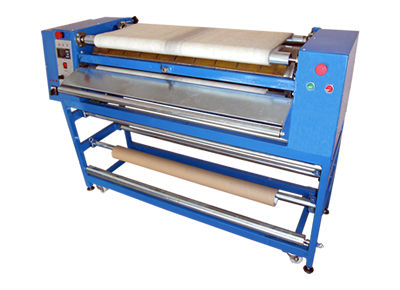

Large format rotary heat transfer machine ( Calander HV-1)

Calander ( HV-2 )

Type

  HV-2

Transfer width:

  max. 1600mm or after order

Belt speed:

  max. 0,85 m/min

Temperature:

  max. 220 °C

Heating power:

  11000W

Electric power supply:

  400/230V, 50Hz, 25A

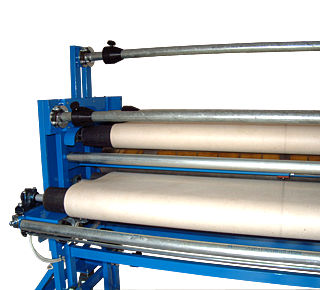

Large format rotary heat transfer machine ( Calander HV-2 )   Large format rotary heat transfer machine ( Calander HV-2 )

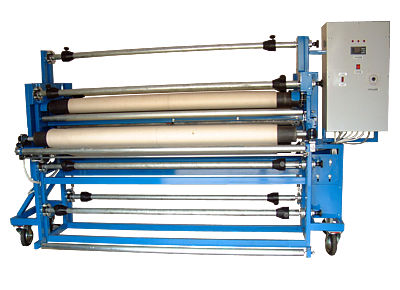

Large format rotary heat transfer machine ( Calander HV-2 )

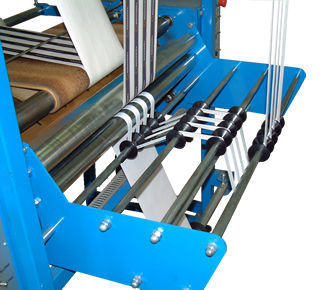

Calander for ribbons ( HV-500 )

Type

  HV-500

Simultaneously printed:

  6, max. 10 ribbons

Max. ironing width:

  400mm

Transit time of 1meter ribbons:

  22-460sec, variable

Drum temperature:

  max. 220°C, regulated

Drum diameter:

  500mm

Heating power:

  8,8kW

Mains:

  400/230V, 50Hz, 25A

Dimensions LxWxH:

  2000x1100x2100mm


Calander for ribbons - HV-500   Calander for ribbons - HV-500
